Universal battery charger with LCD display for charging and maintenance of 12V car and motorcycle batteries

Universal device for maintenance of 12 V batteries

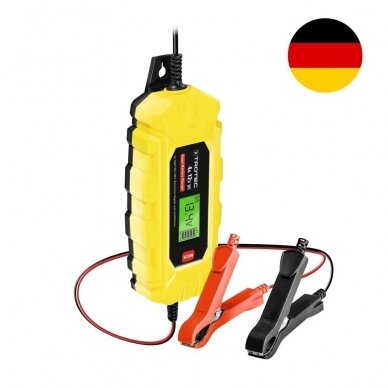

The battery charger Trotec PBCS 4A is characterized by high performance and compact size. Optimized for the technically advanced and powerful batteries of modern vehicles. The portable battery charger Trotec PBCS 4A with a charging current of 4 amps and an illuminated LCD will allow you to enjoy extremely fast and safe charging of 12 V batteries for cars, convertibles or motorcycles.

Protection against discharge, battery damage and battery-related malfunctions

If you drive a convertible, classic or vintage car or motorized bicycle, you will be familiar with the following problems: low temperatures in winter, infrequent use of the vehicle, short trips and the age of the vehicle have a negative effect on battery performance. Improper maintenance shortens battery life, which can be a major reason why your car or other vehicle won't start.. Although battery technology is very advanced these days, dead batteries remain the most common cause of breakdowns. With the fast charging mode, the battery charger Trotec PBCS 4A protects the battery from discharge and maintains the ideal charge level!

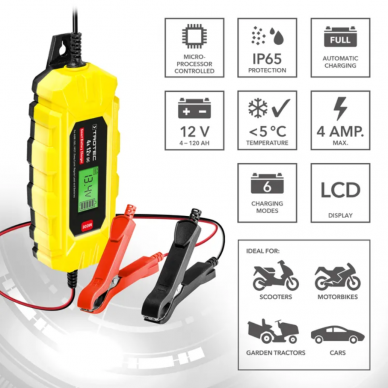

Features of the battery charger Trotec PBCS 4A:

• Six adjustable programs (standard charging mode, AGM mode, winter charging mode, short-term charging mode, recovery mode, supply mode);
• Five-stage charging progress indication (20%, 40%, 60%, 80%, 100%);
• Optical warning function in case of incorrect battery terminal polarity (including reverse polarity protection function);

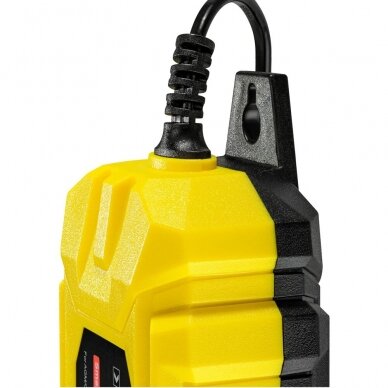

• Practical hanging loop for fixing to the wall;

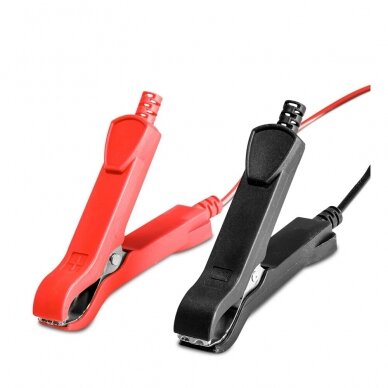

• Fully insulated battery terminals.
• The intelligent control of the battery charger Trotec PBCS 4A constantly monitors the charging cycles and automatically adapts the required mode when necessary.

Safe use

The battery charger Trotec PBCS 4A has protection against dust and water splashes according to IP65 degree of protection. Also, the battery charger Trotec PBCS 4A reliably protects the battery from overcharging or overheating. Accidentally mixing up the battery poles during connection is also not a problem: the built-in reverse polarity protection prevents short circuits, sparks, damage to the battery or charger. You will see warning messages on the LCD screen when the battery voltage is too low or too high.

Loaders

• Standard charging mode. Standard charging mode is suitable for charging partially discharged lead-acid and gel-type 12V batteries. The cyclically optimized charging process extends the battery life.
• AGM charging mode. The AGM charging mode is specially designed to charge AGM type 12 V batteries. The cyclically optimized charging process extends the battery life.
• Winter charging mode. Modern batteries (lead acid, AGM and gel) are extremely sensitive to temperature. When the ambient temperature drops below 5 °C, the chemical processes in the lead-acid battery slow down. The winter charging mode is then perfect for quickly charging 12 V batteries in cold environments (-20 °C to +5 °C) with an increased charging voltage.
• Fast charging mode. The fast charging mode is designed to permanently and reliably compensate for self-discharge of the battery (lead acid, AGM and gel). The maximum charging capacity is maintained continuously without damaging the battery by overcharging. Ideal for servicing the batteries of rarely used vehicles such as vintage cars or convertibles.
• Recovery mode for disassembled and detached batteries. The recovery mode is designed to repair deeply discharged lead-acid batteries to ensure they return to their rated capacity. Battery life is extended, in many cases an upgrade can prevent the need for a new battery.
• Supply mode. When the battery needs to be disconnected or replaced, the PBCS 4A in power mode is used as the power source. All electronic settings of the car remain unchanged.

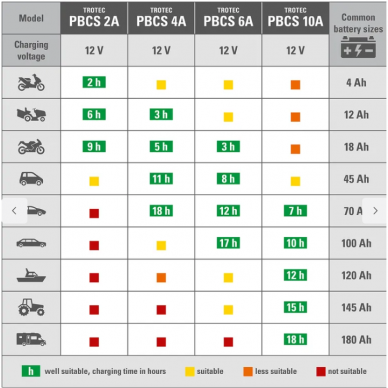

Charging time

• 8 Ah: ~ 2 hours;
• 20 Ah: ~ 5 hours;
• 40 Ah: ~ 10 hours;;
• 70 Ah: ~ 18 hours;
• 80 Ah: ~ 20 hours.

Technical characteristics:

• Voltage: 12 V;
• Maximum charging current: 4.0 A;
• Power supply: 70W;
• Battery type: 4-120 Ah lead acid, Ca/Ca, EFB, gel and AGM batteries;
• Protection class: IP65;
• Connection plug: CEE 7/16;
• Cable length: 1.5 m;
• Number of terminals: 2 pcs.;
• Charging programs: 6 pcs.;

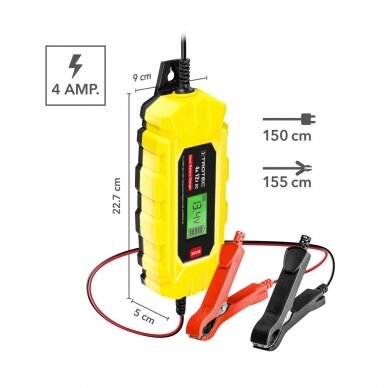

• Dimensions: 227 x 90 x 50 mm;
• Weight (packages): 0.44.
