Floor heating grid Warmset BLACK, 150W + programmable thermostat Feelspot WTH51.36 NEW

  • Floor heating grid Warmset BLACK, 150W + programmable thermostat Feelspot WTH51.36 NEW

    11300
    In stock.
    Add to cart
  • The Warmset BLACK underfloor heating grid features a new infrared technology. This heating system is easy to install under tiles. It is usually laid in layers of glue or screed. Depending on the size of the room, heating can be done with one or more rolls of WARMSET Black mesh.

    Features:
    • Power: 150 W/m 2 . According to a separate order, it is possible to order from 30 to 300 W/m 2 ;
    • Insulation resistance up to 80 °C;
    • Warranty: 10 years. The warranty applies after filling out the technical passport in the product manual;
    • Complies with the electrical installation directive (BS7671:2008) standard EN60335-2-96;
    • Due to the convenient structure, the grid can be installed quickly and easily;
    • Extremely thin (only 3 mm);
    • Ideal for installation in smoothing or adhesive layers;
    • Suitable for wet installation under tiles, stone, ceramic or glued wood floors;
    • Protection class: IPX7.

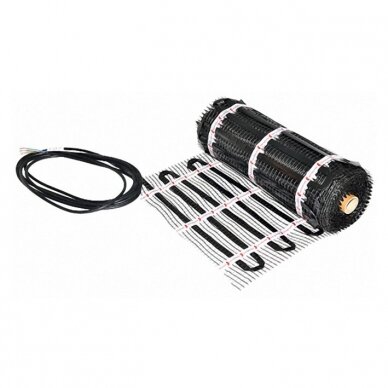

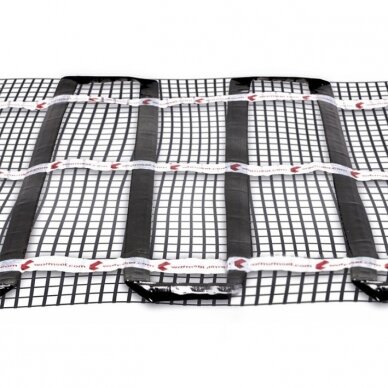

    The Warmset floor heating system consists of a 17 mm wide strip placed on a fiberglass mesh with a standard width of 500 mm. The wires inside the tape are mainly made of aluminum and other metal alloys covered with a polypropylene film. The mesh has an average thickness of 3-4mm with a maximum 6mm front-to-back joint. The length and power of the mesh roll can be varied: 1 - 40 m long and from 30 to 300 W/m2. As standard, you can purchase a 150 W/m2 grid.
    The gap between the heating strips varies from 25 to 70 mm (depending on the W/m2 power). The standard length of the electric cable is 5 m.
    Thanks to its two-wire structure , the Warmset BLACK mesh does not emit electromagnetic radiation.

    The packaging of these underfloor heating mats is made from at least 40% recycled materials and is environmentally friendly!​​

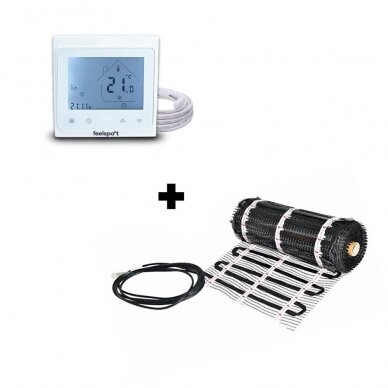

    Electronic programmable thermostat (thermoregulator) Feelspot WTH51.36 NEW

    Feelspot WTH51.36 NEW is an electronic programmable thermostat (thermoregulator) for controlling electric underfloor heating devices.

    Advantages:

    • Modern design;
    • Touch screen;
    • Simple installation;
    • Both air and floor temperature can be controlled with the help of internal and external sensors;
    • Six programmable time intervals for maximum comfort and economy.

    Technical information:

    • Protection class: IP20;
    • Sensor: NTC;
    • Accuracy: ±1 °C;
    • Set temp. range;
    • Power consumption: < 1.5 W;
    • Timing error: <1%;
    • Power supply: 95-240 V AC, 50-60 Hz;
    • Electric current (for electric heating): 16 A;
    • Body material: PC + ABS;
    • Dimensions: 86 x 86 x 13.3 mm;
    • Ambient Temp./Humidity limits: 0-45°C / 5-95% RH;
    • Depth of the hole in the wall (for installation): 60 mm.

    The set includes:

    • Thermostat - 1 pc.;
    • Screws - 1 pc.;
    • Installation/programming instructions - 1 pc.;
    • Wall plate - 1 pc.;
    • 2.5 m external sensor - 1 pc.

    Important! The 10-year warranty applies after filling out the technical passport, which you will find after downloading the warranty magazine.

    Download the warranty magazine
    Download the product manual
    Download the thermostat manual
