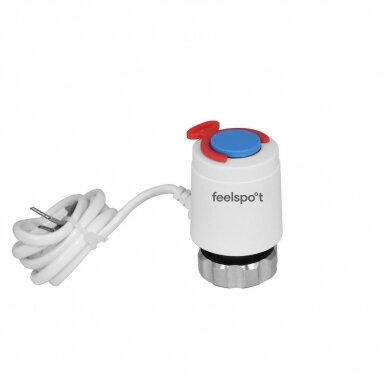

Floor heating thermostatic actuator Feelspot EP22.09 is intended for use in floor heating collectors. Feelspot actuators can be used with all electromechanical or electronic room thermostats to control independent circuits or zones.

Technical information:

• Type: NC (normally closed);
• Power supply: 230 V AC;
• Power: 2 W;
• Starting current: 50 mA;
• Direct current: 6.5 mA;
• Thread type: M30 x 1.5 mm
• Stem travel: 4.5 mm;
• Adjustment force: 110N;
• Operating temperature: -20 - 50°C;
• Protection class: IP54;
• Cable wire length: 1 m;
• Dimensions: 62 x 30 x 39 mm;
• Opens in 180 s.
